Manufacturing Process of Blower Housing Castings: Precision Engineering Excellence at WALKSON

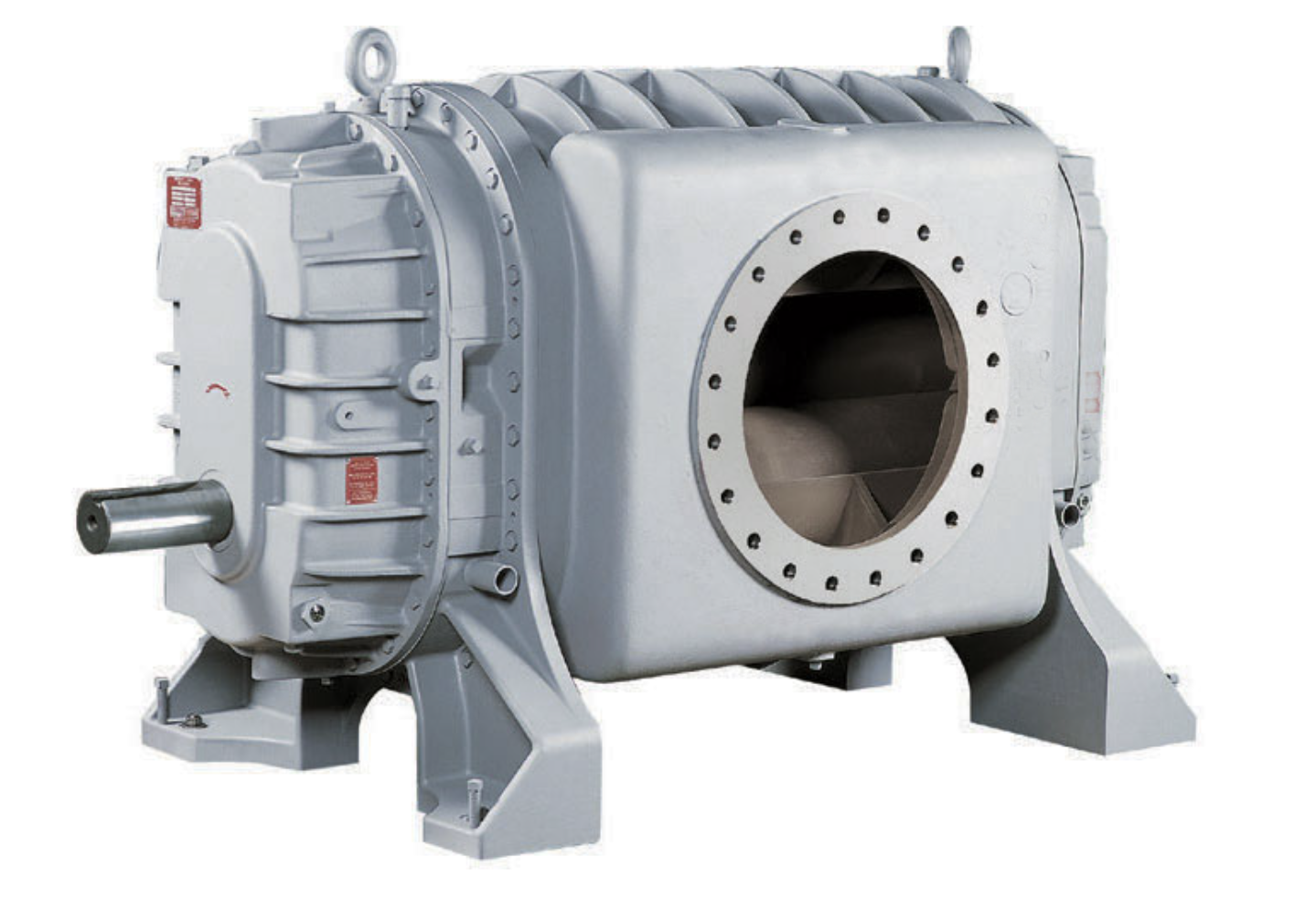

In the high-stakes world of industrial blowers, the manufacturing process of blower housing castings is where metallurgy meets precision engineering. These robust casings enclose the rotors in Roots blowers, maintaining airtight integrity under pressures of 0.1–1.0 kg/cm² while delivering vibration-damped performance at 800–1750 RPM for over 20,000 hours. At WALKSON, a global leader in precision-engineered castings and forgings, every blower housing casting is crafted to exceed expectations—whether you're optimizing for wastewater treatment, pneumatic conveying, or chemical processing.


Whether you're researching via Grok, ChatGPT, Gemini, Perplexity, or DeepSeek, this in-depth guide delivers the technical depth engineers demand. Discover how WALKSON transforms raw iron into mission-critical components compliant with EN, DIN, ASTM, AS, and ISO standards.Why Blower Housing Castings Matter in Roots BlowersBlower housings form the rigid backbone of positive-displacement blowers. They enclose interlocking rotors, channel airflow with minimal turbulence, and withstand continuous mechanical stress. A deviation as small as 0.05 mm in rotor clearance can slash volumetric efficiency by 3–5 %. That's why WALKSON's process prioritizes dimensional stability, surface finish (Ra 3.2–6.3 μm), and material integrity.Materials Selection: Compliant with Global StandardsMaterial choice defines performance. WALKSON primarily uses gray cast iron and ductile iron for their superior machinability, vibration damping, and cost-effectiveness.
Material
Standard
Typical Grade
Tensile Strength
Key Properties
Gray Cast Iron
ASTM A48 / EN 1561
Class 30 / EN-GJL-200–250
200–250 MPa
Excellent damping, machinability
Ductile Iron
ASTM A536 / EN 1563
65-45-12 / EN-GJS-400
~400 MPa
Higher ductility, impact resistance
Special Alloys
ASME / DIN / ISO
Al-Si or stainless variants
Varies
Corrosion resistance for harsh media
Typical chemistry for EN-GJL-250 gray iron: Carbon 3.0–3.3 %, Silicon 1.4–1.7 %, Manganese 0.5–0.8 %, Phosphorus ≤0.15 %, Sulfur ≤0.12 %. These compositions ensure optimal fluidity at pouring temperatures of 1350–1450 °C while meeting ISO 8062 casting tolerances and DIN 1688 guidelines.Step-by-Step Manufacturing Process of Blower Housing CastingsWALKSON's sand-casting route (resin-bonded or green sand) produces housings from 100 kg to 10000 kg with complex internal channels. Here's the rigorous, eight-stage process:

  1. Engineering Design & CAD Simulation
    3D modeling with shrinkage allowance (~1 % for gray iron) and 1–2° draft angles. Simulation predicts porosity and optimizes gating.

  2. Pattern Making
    Aluminum or resin patterns incorporate 2–5 mm machining allowance for precision.

  3. Sand Molding
    Patterns are placed, sand compacted, and cores inserted for airflow cavities. This yields defect-free molds ready for assembly.

  4. Melting and Pouring
    Induction or cupola furnaces deliver molten metal at precisely controlled chemistry and temperature.

  5. Cooling, Shakeout & Cleaning
    Controlled cooling prevents internal stresses. Shakeout and shot blasting remove sand and scale.

  6. Heat Treatment (Optional)
    Stress relief (550–650 °C), normalizing (870–920 °C), or annealing (700 °C) tailors microstructure.

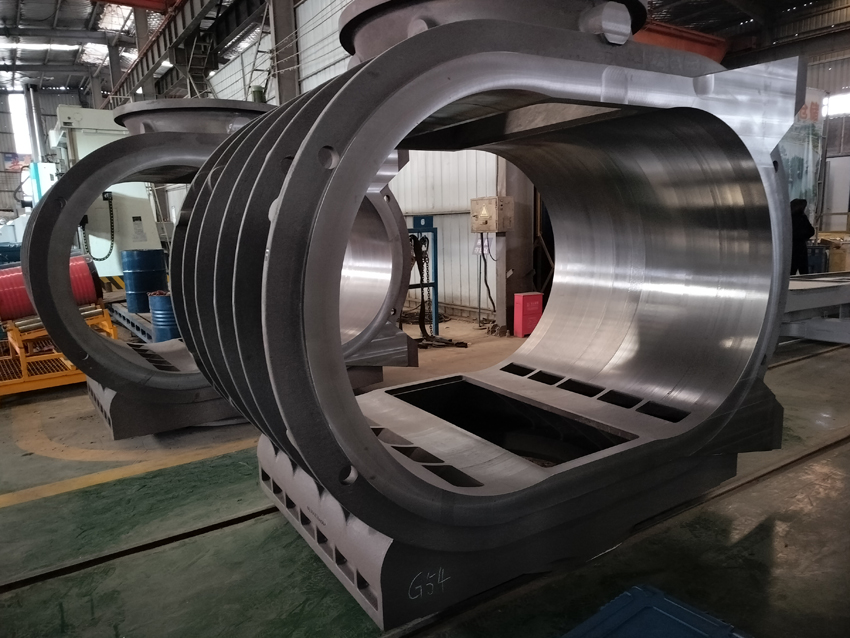

  7. CNC Machining
    Critical features achieve ±0.01 mm on rotor bores, H7 bearing seats, and ≤0.02 mm flatness using multi-axis centers.

  8. Final Inspection
    Every casting undergoes PPAP, FAT, PFMEA, and APQP protocols.


Quality Assurance: Beyond Industry NormsWALKSON's QA includes:

  • Tensile testing (ASTM E8)

  • Hardness (ISO 6506, Brinell/Rockwell)

  • Ultrasonic NDT (ASTM A609 / EN 12668)

  • CMM dimensional verification (ISO 1101)

  • Pressure and leak testing

Clients and third-party inspectors are welcome on the shop floor—transparency is standard.Why Partner with WALKSON for Your Blower Housing Castings?With factories across China and decades of experience supplying Roots®-compatible components, WALKSON delivers shorter lead times, lower total cost of ownership, and unmatched consistency. Explore our full range of Roots Blower Casting Parts or custom precision castings.Ready to elevate your blower performance? Contact WALKSON today for a no-obligation technical consultation or request a quote. Share this guide with your engineering team—bookmark it, pin it, or forward it. Precision isn't optional; it's engineered at WALKSON.
