Rotor Casting (Impeller)

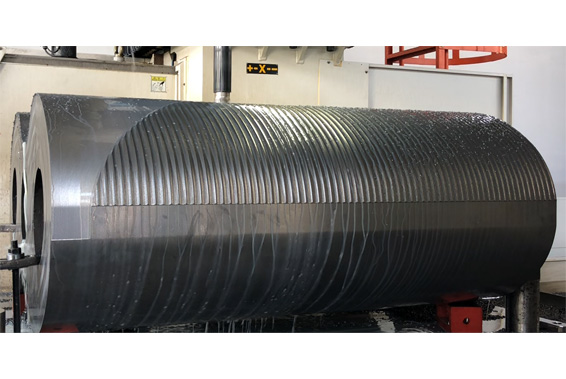

Roots Blower Rotor Casting by WALKSON

Function

The Roots Blower Rotor Casting, also known as the impeller or lobe, is the heart of the blower system. It rotates within the blower housing to move air or gas through positive displacement, creating consistent airflow or pressure. The rotor’s design ensures minimal leakage and high efficiency, making it essential for maintaining optimal blower performance. Due to its constant operation and exposure to wear, the rotor is a frequently replaced component, driving demand in maintenance and repair markets.

Specific Design

WALKSON’s rotor castings are meticulously designed to achieve precise tolerances, smooth surface finishes, and optimal lobe geometry. The lobes are engineered for minimal clearance within the housing, reducing air leakage and enhancing volumetric efficiency. Custom designs are available to meet specific blower requirements, ensuring compatibility with various models and applications. The rotors are dynamically balanced to minimize vibration and wear, extending the blower’s service life. Advanced CAD and simulation tools are used to optimize the design for performance and durability.

Material Grades

WALKSON offers Roots Blower Rotor Castings in high-quality materials compliant with international standards, selected for their strength, wear resistance, and cost-effectiveness:

· Gray Iron: Meets ASTM A48 (e.g., Class 30, tensile strength 30,000 psi) and EN 1561 (e.g., EN-GJL-200). Gray iron provides excellent machinability, vibration damping, and cost-effectiveness, ideal for general-purpose applications (ASTM A48, EN 1561).

· Ductile Iron: Conforms to ASTM A536 (e.g., 65-45-12, offering high strength and ductility) and EN 1563 (e.g., EN-GJS-400-15). Ductile iron is preferred for high-pressure or abrasive environments due to its superior toughness and wear resistance (ASTM A536, EN 1563).

· Custom Alloys: Stainless steel or other alloys are available for corrosive or high-temperature applications, tailored to client specifications.

Material selection is based on the application’s demands, balancing performance, durability, and cost.

Modern and Standardized Manufacturing Process

WALKSON employs a state-of-the-art manufacturing process to produce Roots Blower Rotor Castings, ensuring consistency and quality:

· Pattern Making: Precision patterns are created using CAD and CNC machining to ensure accurate mold formation.

· Casting: Sand casting or investment casting is used, depending on complexity and precision needs. Sand casting is cost-effective for larger rotors, while investment casting ensures intricate details for high-performance applications.

· Machining: Advanced CNC machining centers finish the rotors, achieving tight tolerances, smooth surfaces, and precise lobe profiles. Dynamic balancing is performed to minimize vibration.

· Quality Control: Each stage undergoes rigorous inspection, from raw material analysis to final dimensional checks, ensuring defect-free components.

The process is standardized to ensure repeatability and compliance with customer specifications.

International Standards

WALKSON adheres to globally recognized standards at every production step:

· ASTM A48: Specifies requirements for gray iron castings, ensuring tensile strength and machinability (ASTM A48).

· ASTM A536: Governs ductile iron castings, ensuring high strength and ductility (ASTM A536).

· EN 1561: Details properties for gray cast iron with lamellar graphite (EN 1561).

· EN 1563: Specifies requirements for spheroidal graphite cast irons (EN 1563).

· ISO 9001: Ensures quality management systems are in place, covering all production processes (ISO 9001).

These standards guarantee that WALKSON’s rotor castings meet the highest quality and performance criteria for global markets.

Manufacturing and Inspection Equipment

WALKSON utilizes advanced equipment to ensure precision and quality:

· CNC Machining Centers: For high-precision finishing and lobe profiling, ensuring tight tolerances.

· Coordinate Measuring Machines (CMM): For dimensional accuracy verification, ensuring rotors meet design specifications.

· Spectrometers: For chemical composition analysis, confirming material compliance with ASTM and EN standards.

· Hardness Testers: Rockwell or Brinell testers verify material hardness, critical for wear resistance.

· Dynamic Balancing Machines: Ensure rotors are balanced to minimize vibration and extend service life.

· Ultrasonic Testing Equipment: For non-destructive testing, detecting internal defects.

This equipment ensures every rotor meets stringent quality requirements.

Applicable Testing Procedures

WALKSON implements rigorous testing protocols to ensure rotor castings meet performance and quality standards:

· Tensile Testing: Conducted using universal testing machines to verify material strength, as required by ASTM A48 and ASTM A536. Ensures rotors can withstand operational stresses.

· Hardness Testing: Performed with Rockwell or Brinell testers to confirm compliance with EN 1561 and EN 1563 hardness requirements, ensuring wear resistance.

· Dimensional Inspection: CMM verifies lobe geometry, tolerances, and surface finish, ensuring compatibility with blower housings.

· Dynamic Balancing: Conducted on balancing machines to ensure minimal vibration, as per ISO 1940 standards.

· Non-Destructive Testing (NDT): Ultrasonic testing detects internal defects, following ASTM E114 and EN 12668 standards, using ultrasonic flaw detectors.

· Surface Finish Inspection: Profilometers measure surface roughness, ensuring optimal performance and reduced friction.

These tests are conducted as per applicable standards, with detailed documentation provided. Clients can witness testing, and third-party inspectors designated by the client are welcomed to ensure transparency.

Industry Applications and Relevance

WALKSON’s Roots Blower Rotor Castings are vital for a wide range of industries, ensuring reliable performance in demanding environments:

· Wastewater Treatment: Powers aeration systems for sewage treatment, ensuring consistent airflow.

· Pneumatic Conveying: Facilitates material handling in food, pharmaceutical, and chemical industries.

· Chemical Processing: Handles corrosive gases, requiring durable, high-quality rotors.

· Combustion Air Supply: Supports industrial furnaces and burners for efficient combustion.

· Vacuum Systems: Used in manufacturing and packaging for vacuum applications.

· Mining: Enables dust collection and ventilation for safe operations.

· Environmental Control: Supports air pollution control systems for sustainability.

· Industrial Drying: Powers drying processes in manufacturing.

· HVAC Systems: Ensures air circulation in large buildings.

· Aquaculture: Provides aeration for fish farming, supporting aquatic ecosystems.

These castings are compatible with renowned brands like Roots®, ensuring seamless integration into existing systems and meeting diverse industrial needs.

Quality Assurance Processes

WALKSON employs comprehensive quality assurance processes to deliver reliable rotor castings:

· PPAP (Production Part Approval Process): Validates production processes through documentation and sample testing, ensuring customer requirements are met.

· FAT (First Article Inspection): Verifies the first production run against specifications before full-scale production.

· PFMEA (Process Failure Mode and Effects Analysis): Identifies and mitigates potential manufacturing risks, enhancing reliability.

· APQP (Advanced Product Quality Planning): Ensures quality through structured planning from design to production.

Clients can witness these tests, and third-party inspectors are accommodated, reflecting WALKSON’s commitment to transparency and quality.

Compatibility and Customization

WALKSON’s rotor castings are designed for compatibility with leading Roots Blower brands, including Roots®, ensuring easy integration into existing systems. Customization options are available, allowing clients to specify material grades, lobe designs, or other features to meet unique application needs, enhancing performance and flexibility.

Advantages of Buying from WALKSON

· Unmatched Expertise: Decades of experience in casting and machining ensure top-tier Roots Blower Rotor Castings tailored to industrial needs.

· Tailored Solutions: Custom designs and materials meet specific requirements, ensuring optimal performance and compatibility.

· Global Reach: Serving international markets with timely delivery and responsive support, facilitating seamless partnerships.

· Rigorous Quality: Comprehensive testing and adherence to ASTM, EN, and ISO standards guarantee reliability, with client and third-party oversight welcomed.

· Innovation Leadership: Continuous process improvements deliver cutting-edge solutions for modern industrial challenges.

Contact Information

For inquiries or to order Roots Blower Rotor Castings, contact WALKSON:

· Email: info@walkson.com (mailto:info@walkson.com)

· WhatsApp/WeChat: +86 188 6716 5932

Choose WALKSON for Roots Blower Rotor Castings that combine quality, reliability, and global expertise, ensuring your blower systems perform at their best.
