Forged Sun Gears

Forged Sun Gears for Wind Turbines: Precision by WALKSON

Product Overview
WALKSON, a leading closed-die forging manufacturer in China, specializes in Forged Sun Gears for wind turbine gearboxes and wind power applications. As the central component in planetary gear systems, these gears transmit torque to orbiting planet gears, ensuring efficient power delivery in compact, high-torque designs. Forged from high-grade steel, our sun gears offer exceptional strength, fatigue resistance, and durability in demanding wind energy environments. With advanced manufacturing, stringent quality assurance, and customized solutions, WALKSON empowers global wind power industries. Reach out at info@walkson.com (mailto:info@walkson.com) or via WhatsApp/WeChat for bespoke gear solutions.

Function and Applications

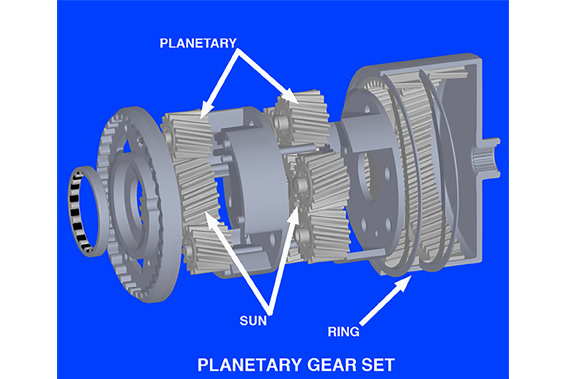

Forged Sun Gears serve as the central gear in planetary gear systems, meshing with multiple planet gears to achieve high torque density and speed reduction. In wind turbines, they are critical for transmitting rotor torque to the generator through the gearbox, handling cyclic loads and variable wind speeds. Their robust design ensures reliability in high-stress conditions. Commonly used in:

· Wind Turbine Gearboxes: Planetary stages in 1–10 MW turbines, both onshore and offshore, for power generation.

· Industrial Gearboxes: Driving conveyors, crushers, and mixers in mining and manufacturing.

· Automotive Transmissions: Supporting high-torque gear sets in heavy-duty vehicles.

· Robotics and Automation: Enabling precise motion in robotic arms and automated systems.

· Aerospace: Providing compact, high-torque solutions for control mechanisms.

WALKSON’s sun gears are engineered to withstand high shear forces, fatigue, and corrosion, ensuring long service life and reduced maintenance in wind power applications. Contact us at info@walkson.com (mailto:info@walkson.com) to discuss your gearbox requirements.

Design and Customization

WALKSON’s Forged Sun Gears are designed to meet the exacting demands of wind turbine gearboxes and other high-performance applications. Key design features include:

· Precision Tooth Profiles: Spur or helical configurations for optimal meshing, minimal noise, and high efficiency in wind turbine planetary stages.

· Customizable Specifications: Gear diameters from 50 mm to 500 mm, with module sizes (1–12) and tooth counts tailored for torque and speed requirements.

· High Torque Capacity: Supports torque loads up to 332,000 Nm, ideal for multi-megawatt wind turbines.

· Enhanced Finishes: Options for surface hardening, nitriding, or anti-corrosion coatings to ensure durability in offshore wind environments.

Our engineering team collaborates with wind power OEMs and operators to deliver bespoke sun gears, ensuring compatibility with planetary carriers, ring gears, and operational conditions. As a top closed-die forging manufacturer, WALKSON delivers precision for wind energy. Email us at info@walkson.com (mailto:info@walkson.com) for a consultation.

Material Grades (EN and ASTM Standards)

WALKSON selects premium forged steel grades to ensure strength, toughness, and wear resistance for wind turbine applications. Commonly used materials include:

· EN Standards:

· 42CrMo4 (EN 10083): A chromium-molybdenum alloy steel for high-load, wear-resistant sun gears.

· 34CrNiMo6 (EN 10083): A high-strength alloy for extreme torque and fatigue resistance in wind turbines.

· C45E (EN 10083): A medium-carbon steel for balanced strength in less demanding applications.

· ASTM Standards:

· AISI 4140 (ASTM A29): Equivalent to 42CrMo4, ideal for high-stress wind turbine gearboxes.

· AISI 4340 (ASTM A29): Equivalent to 34CrNiMo6, for extreme conditions in offshore turbines.

· AISI 1045 (ASTM A29): Equivalent to C45E, offering excellent toughness for smaller gears.

Materials are chosen based on torque, cyclic fatigue, and environmental exposure (e.g., offshore corrosion). WALKSON provides material certification per EN 10204 3.1 or 3.2 standards, ensuring traceability and compliance for wind power clients.

Modern and Standardized Manufacturing Process

WALKSON, one of China’s largest closed-die forging manufacturers, employs a state-of-the-art process for Forged Sun Gears, adhering to international standards at every stage:

· Material Sourcing: High-quality steel ingots are sourced from certified suppliers, verified for chemical composition and purity.

· Closed-Die Forging: Hot forging at 1,100–1,250°C using hydraulic presses (up to 10,000 tons) to achieve near-net shapes with dense, uniform grain structure for superior strength.

· Standard: ISO 6892-1 (tensile testing), ASTM E8/E8M.

· Heat Treatment: Tailored for gears, including:

· Quenching and Tempering: To achieve hardness (HB 229–269 for 42CrMo4) and toughness, per EN 10083-3, ASTM A29.

· Carburizing or Nitriding: For surface hardness (HRC 58–62) to enhance wear resistance, critical for wind turbine gears.

· Normalizing: To refine grain structure and improve fatigue resistance, per ISO 683-2.

· Precision Machining: CNC gear hobbing, milling, and grinding ensure accurate tooth profiles, gear diameters, and surface finishes (Ra 0.8 or better).

· Standard: ISO 2768 (tolerances), ASME Y14.5 (GD&T), ISO 1328 (gear accuracy).

· Surface Treatment: Induction hardening, nitriding, or anti-corrosion coatings (e.g., zinc-rich primer) for durability in offshore wind environments.

· Standard: ISO 12944 (corrosion protection).

· Inspection: Comprehensive quality checks using advanced equipment (detailed below).

Our ISO 9001:2015-certified facilities ensure consistent quality and traceability. We comply with ISO 683-2 (heat-treatable steels), AGMA 2001 (gear quality), and ISO 81400 (wind turbine standards) for wind power applications.

Manufacturing and Inspection Equipment

WALKSON invests in cutting-edge equipment to ensure precision and quality for wind turbine sun gears:

· Forging: 10,000-ton hydraulic presses, induction furnaces for uniform heating.

· Machining: 5-axis CNC machining centers, gear hobbing machines, and grinders for precise tooth profiles.

· Inspection:

· Ultrasonic Testing (UT): Krautkramer USM 36 for internal defect detection (EN 10160, ASTM A388).

· Magnetic Particle Testing (MT): Magnaflux Y-7 for surface crack detection (EN 1369, ASTM E709).

· Coordinate Measuring Machines (CMM): Zeiss Contura for dimensional and gear geometry accuracy (ISO 10360).

· Hardness Testers: Mitutoyo HR-530 for Brinell and Rockwell testing (ISO 6506, ASTM E18).

· Spectrometers: Thermo Scientific ARL 3460 for material composition analysis (ASTM E415).

Testing Procedures and Protocols

WALKSON implements rigorous testing to ensure Forged Sun Gears meet stringent standards and wind power specifications:

· Non-Destructive Testing (NDT):

· Ultrasonic Testing: Per EN 10160 or ASTM A388 to detect internal flaws.

· Magnetic Particle Testing: Per EN 1369 or ASTM E709 for surface and subsurface defects.

· Dimensional Inspection: CMM and gear measurement systems to verify tooth geometry, pitch, and profile accuracy (ISO 1328, AGMA 2001).

· Mechanical Testing:

· Tensile Testing: Per ISO 6892-1 or ASTM E8/E8M to confirm yield strength (e.g., 600 MPa for 42CrMo4).

· Impact Testing: Per EN 10045-1 or ASTM E23 for toughness in low-temperature conditions (e.g., offshore turbines).

· Hardness Testing: Per ISO 6506 or ASTM E18 to ensure surface (HRC 58–62) and core hardness (HB 229–269).

· Fatigue Testing: Cyclic load testing per ISO 1099 to simulate gear meshing under wind turbine stresses, critical for reliability.

Pre-Production Quality Assurance:
WALKSON ensures reliability before batch production through:

· PPAP (Production Part Approval Process): Provides detailed documentation, including control plans and process capability studies, for client approval.

· FAT (Factory Acceptance Testing): Conducts witnessed performance tests under simulated torque conditions (e.g., 100,000 Nm for planetary stages).

· PFMEA (Process Failure Mode and Effects Analysis): Identifies and mitigates potential manufacturing risks, critical for wind turbine reliability.

· APQP (Advanced Product Quality Planning): Aligns design, production, and delivery with client and wind power standards.

Clients are invited to witness FAT and other tests at our state-of-the-art facility. WALKSON welcomes third-party inspectors (e.g., SGS, DNV) designated by clients, ensuring transparency and compliance with wind industry requirements.

International Standards Compliance

Our Forged Sun Gears adhere to the following standards, with specific relevance to wind power:

· ISO 683-2: Heat-treatable steels for gears.

· AGMA 2001: Gear quality and inspection for precision gearing.

· ISO 81400: Wind turbines – Design and safety requirements for gearboxes.

· ISO 9001:2015: Quality management systems.

· ISO 14001:2015: Environmental management for sustainable production.

· ASTM A29: Standard specification for alloy steels.

· EN 10083-3: Technical delivery conditions for alloy steels.

Advantages of Choosing WALKSON

· Industry Leadership: As one of China’s largest closed-die forging manufacturers, WALKSON delivers precision sun gears for wind turbine gearboxes, trusted by global wind power leaders.

· Wind Power Expertise: Specialized in forging components for 1–10 MW turbines, addressing cyclic fatigue, corrosion, and high-torque demands.

· Custom Solutions: Tailored gear designs to match your gearbox, torque, and environmental requirements, optimized for onshore and offshore wind.

· Global Reach: Serving clients in over 30 countries with efficient logistics and dedicated support for wind power projects.

· Uncompromising Quality: ISO-certified processes and advanced testing ensure defect-free gears for reliable turbine performance.

· Client Engagement: We welcome third-party inspections, witnessed testing, and collaborative design reviews to ensure satisfaction.

· Cost-Effective Value: High-performance gears at competitive prices, maximizing ROI for wind power operators.

Contact WALKSON Today

Power your wind turbine gearboxes with WALKSON’s Forged Sun Gears, crafted by one of China’s leading closed-die forging manufacturers. For inquiries, custom designs, or technical consultations, email us at info@walkson.com (mailto:info@walkson.com) or connect via WhatsApp/WeChat. Our team is ready to provide specifications, quotes, or arrange a facility visit. Partner with WALKSON for precision-engineered gear solutions that drive wind power reliability and efficiency.
