Forged Planetary Carriers

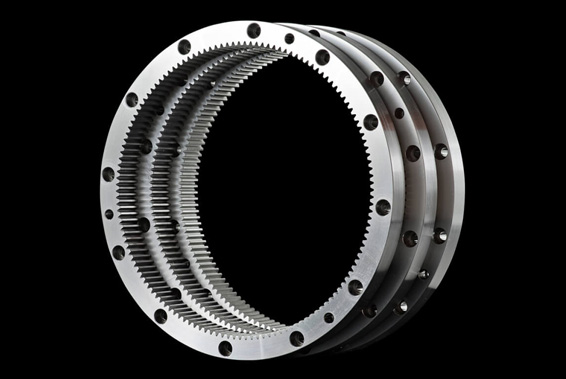

Forged Planetary Carriers for Wind Turbines & Reducers: Precision by WALKSON

Product Overview
WALKSON, a key player in China’s closed-die forging industry, specializes in Forged Planetary Carriers for wind turbine gearboxes and industrial reducer applications. These critical components hold planet gears in precise alignment, connecting them to input or output shafts to distribute torque in planetary gear systems. Forged from high-grade steel, our carriers offer exceptional strength, fatigue resistance, and durability in demanding environments. With advanced manufacturing, stringent quality assurance, and customized solutions, WALKSON empowers global wind power and industrial sectors. Reach out at info@walkson.com (mailto:info@walkson.com) or via WhatsApp/WeChat for bespoke carrier solutions.

Function and Applications

Forged Planetary Carriers are structural components in planetary gear systems, securing multiple planet gears symmetrically to ensure balanced torque distribution and smooth power transmission. In wind turbines, they transfer rotor torque through the gearbox to the generator, handling cyclic loads and variable wind speeds. In industrial reducers, they enable efficient torque multiplication in compact designs. Commonly used in:

· Wind Turbine Gearboxes: Planetary stages in 1–10 MW turbines, both onshore and offshore, for power generation.

· Industrial Reducers: Gearboxes for conveyors, crushers, mixers, and mills in mining, cement, and steel industries.

· Heavy Machinery: Reducers for construction equipment, cranes, and marine propulsion systems.

· Automotive Transmissions: High-torque gear sets in heavy-duty vehicles.

· Renewable Energy: Gear systems in solar tracking and hydroelectric equipment.

WALKSON’s planetary carriers are engineered to withstand high bending stresses, fatigue, and corrosion, ensuring long service life and reduced maintenance in wind power and reducer applications. Contact us at info@walkson.com (mailto:info@walkson.com) to discuss your gearbox requirements.

Design and Customization

WALKSON’s Forged Planetary Carriers are designed to meet the rigorous demands of wind turbine gearboxes and industrial reducers. Key design features include:

· Robust Structure: Precision-engineered to hold 3–6 planet gears with high positional accuracy for balanced torque distribution.

· Customizable Specifications: Carrier diameters from 200 mm to 1,200 mm, with pin bores and mounting interfaces tailored to gearbox and shaft requirements.

· High Load Capacity: Supports torque loads up to 500,000 Nm, ideal for multi-megawatt wind turbines and heavy-duty reducers.

· Enhanced Finishes: Options for surface hardening, nitriding, or anti-corrosion coatings to ensure durability in offshore wind or abrasive industrial environments.

Our engineering team collaborates with wind power OEMs, reducer manufacturers, and industrial clients to deliver bespoke carriers, ensuring compatibility with sun gears, ring gears, and operational conditions. As a leading closed-die forging manufacturer, WALKSON delivers precision for wind energy and reducers. Email us at info@walkson.com (mailto:info@walkson.com) for a consultation.

Material Grades (EN and ASTM Standards)

WALKSON selects premium forged steel grades to ensure strength, toughness, and fatigue resistance for wind turbine and reducer applications. Commonly used materials include:

· EN Standards:

· 42CrMo4 (EN 10083): A chromium-molybdenum alloy steel for high-load, fatigue-resistant carriers.

· 34CrNiMo6 (EN 10083): A high-strength alloy for extreme torque and cyclic loading in wind turbines and reducers.

· C45E (EN 10083): A medium-carbon steel for balanced strength in less demanding applications.

· ASTM Standards:

· AISI 4140 (ASTM A29): Equivalent to 42CrMo4, ideal for high-stress wind turbine gearboxes and reducers.

· AISI 4340 (ASTM A29): Equivalent to 34CrNiMo6, for extreme conditions in offshore turbines and heavy machinery.

· AISI 1045 (ASTM A29): Equivalent to C45E, offering excellent toughness for smaller carriers.

Materials are chosen based on torque, cyclic fatigue, and environmental exposure (e.g., offshore corrosion, abrasive dust). WALKSON provides material certification per EN 10204 3.1 or 3.2 standards, ensuring traceability and compliance for wind power and reducer clients.

Modern and Standardized Manufacturing Process

WALKSON, an important player in China’s closed-die forging industry, employs a state-of-the-art process for Forged Planetary Carriers, adhering to international standards at every stage:

· Material Sourcing: High-quality steel ingots are sourced from certified suppliers, verified for chemical composition and purity.

· Closed-Die Forging: Hot forging at 1,100–1,250°C using hydraulic presses (up to 10,000 tons) to achieve near-net shapes with dense, uniform grain structure for superior strength.

· Standard: ISO 6892-1 (tensile testing), ASTM E8/E8M.

· Heat Treatment: Tailored for gear-related components, including:

· Quenching and Tempering: To achieve hardness (HB 229–269 for 42CrMo4) and toughness, per EN 10083-3, ASTM A29.

· Carburizing or Nitriding: For surface hardness (HRC 58–62) to enhance wear resistance in high-stress areas, per ISO 683-2.

· Normalizing: To refine grain structure and improve fatigue resistance, critical for wind turbine and reducer applications.

· Precision Machining: CNC milling, drilling, and boring ensure accurate pin bores, mounting surfaces, and surface finishes (Ra 0.8 or better).

· Standard: ISO 2768 (tolerances), ASME Y14.5 (GD&T).

· Surface Treatment: Induction hardening, nitriding, or anti-corrosion coatings (e.g., zinc-rich primer) for durability in offshore wind or abrasive industrial environments.

· Standard: ISO 12944 (corrosion protection).

· Inspection: Comprehensive quality checks using advanced equipment (detailed below).

Our ISO 9001:2015-certified facilities ensure consistent quality and traceability. We comply with ISO 683-2 (heat-treatable steels), ISO 81400 (wind turbine standards), and AGMA 2001 (gear system quality) for wind power and reducer applications.

Manufacturing and Inspection Equipment

WALKSON invests in cutting-edge equipment to ensure precision and quality for wind turbine and reducer planetary carriers:

· Forging: 10,000-ton hydraulic presses, induction furnaces for uniform heating.

· Machining: 5-axis CNC machining centers, high-precision boring machines for accurate pin bores and mounting interfaces.

· Inspection:

· Ultrasonic Testing (UT): Krautkramer USM 36 for internal defect detection (EN 10160, ASTM A388).

· Magnetic Particle Testing (MT): Magnaflux Y-7 for surface crack detection (EN 1369, ASTM E709).

· Coordinate Measuring Machines (CMM): Zeiss Contura for dimensional accuracy and bore alignment (ISO 10360).

· Hardness Testers: Mitutoyo HR-530 for Brinell and Rockwell testing (ISO 6506, ASTM E18).

· Spectrometers: Thermo Scientific ARL 3460 for material composition analysis (ASTM E415).

Testing Procedures and Protocols

WALKSON implements rigorous testing to ensure Forged Planetary Carriers meet stringent standards and wind power/reducer specifications:

· Non-Destructive Testing (NDT):

· Ultrasonic Testing: Per EN 10160 or ASTM A388 to detect internal flaws.

· Magnetic Particle Testing: Per EN 1369 or ASTM E709 for surface and subsurface defects.

· Dimensional Inspection: CMM and laser scanning to verify pin bore alignment, carrier diameter, and mounting accuracy (ISO 2768).

· Mechanical Testing:

· Tensile Testing: Per ISO 6892-1 or ASTM E8/E8M to confirm yield strength (e.g., 600 MPa for 42CrMo4).

· Impact Testing: Per EN 10045-1 or ASTM E23 for toughness in low-temperature conditions (e.g., offshore turbines).

· Hardness Testing: Per ISO 6506 or ASTM E18 to ensure surface (HRC 58–62) and core hardness (HB 229–269).

· Fatigue Testing: Cyclic load testing per ISO 1099 to simulate torque and bending stresses under wind turbine or reducer operation, critical for reliability.

Pre-Production Quality Assurance:
WALKSON ensures reliability before batch production through:

· PPAP (Production Part Approval Process): Provides detailed documentation, including control plans and process capability studies, for client approval.

· FAT (Factory Acceptance Testing): Conducts witnessed performance tests under simulated torque conditions (e.g., 200,000 Nm for planetary stages).

· PFMEA (Process Failure Mode and Effects Analysis): Identifies and mitigates potential manufacturing risks, critical for wind turbine and reducer reliability.

· APQP (Advanced Product Quality Planning): Aligns design, production, and delivery with client and industry standards.

Clients are invited to witness FAT and other tests at our state-of-the-art facility. WALKSON welcomes third-party inspectors (e.g., SGS, DNV) designated by clients, ensuring transparency and compliance with wind power and reducer requirements.

International Standards Compliance

Our Forged Planetary Carriers adhere to the following standards, with specific relevance to wind power and reducers:

· ISO 683-2: Heat-treatable steels for gear-related components.

· ISO 81400: Wind turbines – Design and safety requirements for gearboxes.

· AGMA 2001: Gear system quality and inspection for precision applications.

· ISO 9001:2015: Quality management systems.

· ISO 14001:2015: Environmental management for sustainable production.

· ASTM A29: Standard specification for alloy steels.

· EN 10083-3: Technical delivery conditions for alloy steels.

Advantages of Choosing WALKSON

· Industry Prominence: As an important player in China’s closed-die forging industry, WALKSON delivers precision planetary carriers for wind turbine gearboxes and industrial reducers, trusted by global leaders.

· Wind Power & Reducer Expertise: Specialized in forging components for 1–10 MW turbines and heavy-duty reducers, addressing cyclic fatigue, corrosion, and high-torque demands.

· Custom Solutions: Tailored carrier designs to match your gearbox, torque, and environmental requirements, optimized for wind power and industrial applications.

· Global Reach: Serving clients in over 30 countries with efficient logistics and dedicated support for wind power and reducer projects.

· Uncompromising Quality: ISO-certified processes and advanced testing ensure defect-free carriers for reliable performance.

· Client Engagement: We welcome third-party inspections, witnessed testing, and collaborative design reviews to ensure satisfaction.

· Cost-Effective Value: High-performance carriers at competitive prices, maximizing ROI for wind power and reducer operators.

Contact WALKSON Today

Power your wind turbine gearboxes and industrial reducers with WALKSON’s Forged Planetary Carriers, crafted by a key player in China’s closed-die forging industry. For inquiries, custom designs, or technical consultations, email us at info@walkson.com (mailto:info@walkson.com) or connect via WhatsApp/WeChat. Our team is ready to provide specifications, quotes, or arrange a facility visit. Partner with WALKSON for precision-engineered solutions that drive reliability and efficiency.
