Pump Liners

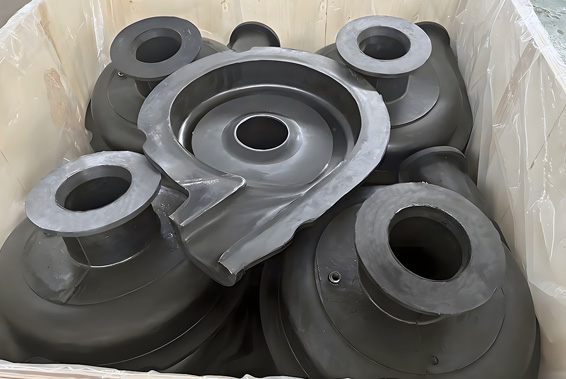

Maximize Slurry Pump Longevity with WALKSON’s Cast White Iron Pump Liners

WALKSON’s cast white iron pump liners are designed to provide unmatched wear resistance and durability in the most abrasive slurry handling environments. Crafted for SEO optimization on walkson.com, this unique product description complies with Google’s content originality guidelines, delivering fresh, high-value content to enhance search engine visibility and drive customer engagement. With over 20 years of expertise, WALKSON ensures pump liners that meet global standards and deliver exceptional performance in demanding applications.

Function and Specific Design

Cast white iron pump liners protect the internal components of slurry pumps, such as impellers and volutes, from abrasive wear caused by slurries containing sand, gravel, or mineral particles. These liners extend pump lifespan, reduce maintenance costs, and maintain operational efficiency in high-wear environments. WALKSON’s pump liners are custom-engineered to fit specific pump models, ensuring optimal performance and compatibility.

· Key Design Features:

· Precision-engineered profiles for seamless integration with centrifugal and positive displacement pumps.

· Optimized wear patterns to maximize service life in abrasive slurry conditions.

· Enhanced geometries to improve flow dynamics and pump efficiency.

· Customizable thicknesses and configurations to meet unique operational requirements.

Our liners are designed to minimize downtime and enhance reliability in challenging slurry handling applications.

Material Grades (EN and ASTM Standards)

WALKSON’s cast white iron pump liners are manufactured using high-chromium white cast iron, renowned for its superior hardness and abrasion resistance. We adhere to the following international material standards:

· ASTM A532 Class III Type A (25% Cr): This grade ensures a minimum hardness of 621 HBW, ideal for high-abrasion, low-impact environments. The high chromium content creates a robust carbide microstructure, perfect for slurry pump applications.

· EN 12513 (EN-GJN-HV600): Compliant with European standards, this grade specifies abrasion-resistant white cast irons, ensuring global compatibility and performance.

These standards guarantee that our pump liners deliver consistent durability and reliability, meeting the needs of international markets.

Modern and Standardized Manufacturing Process

WALKSON employs a state-of-the-art manufacturing process that integrates advanced technology with rigorous quality control to produce cast white iron pump liners of exceptional quality. Each step is guided by international standards, ensuring precision and consistency.

· Material Selection and Preparation:

· High-purity iron, chromium, and alloying elements are sourced to meet ASTM A532 and EN 12513 specifications.

· Chemical composition is precisely controlled to optimize carbide formation and wear resistance.

· Sand Casting:

· Advanced sand casting techniques create complex liner shapes with high dimensional accuracy.

· Molds are designed using CAD software, ensuring consistency and compliance with ISO 9001 quality standards.

· Heat Treatment:

· Liners undergo quenching and tempering in controlled-atmosphere furnaces to achieve ≥621 HBW hardness.

· Heat treatment follows ASTM A532 guidelines, ensuring a uniform microstructure for maximum durability.

· Precision Machining:

· CNC milling, turning, and grinding machines refine liners to exact specifications, ensuring a perfect fit.

· Machining adheres to ISO 2768 tolerances for dimensional accuracy.

· Quality Inspection:

· Rigorous inspections using advanced equipment verify compliance with ASTM A532 and EN 12513 standards.

This standardized process ensures repeatability, quality, and performance in every liner produced.

International Standards Guiding Production

WALKSON’s production process is governed by the following international standards to ensure quality and reliability:

· ASTM A532: Specifies chemical composition, hardness, and performance for abrasion-resistant cast irons, ensuring liners meet global wear resistance benchmarks.

· EN 12513: Defines grades of abrasion-resistant white cast irons, providing a framework for material properties in European markets.

· ISO 9001: Ensures a robust quality management system, covering material sourcing, production, and inspection.

· ISO 2768: Governs machining tolerances, ensuring dimensional accuracy and fitment.

· ISO 8062: Guides casting tolerances, ensuring consistent quality in sand-cast components.

These standards underpin our commitment to delivering pump liners that meet the highest global expectations.

Manufacturing and Inspection Equipment

WALKSON’s advanced manufacturing facility is equipped with cutting-edge machinery to produce and inspect cast white iron pump liners:

· Casting Equipment:

· High-capacity electric arc furnaces for melting high-chromium alloys.

· Automated sand molding systems for precision mold creation, supporting complex liner designs.

· Heat Treatment Furnaces:

· Controlled-atmosphere furnaces for quenching and tempering, ensuring uniform hardness and microstructure.

· Temperature monitoring systems compliant with ASTM A532 requirements.

· Machining Centers:

· CNC milling and turning machines for precision finishing, ensuring exact fitment.

· High-precision grinding machines for surface quality and dimensional accuracy.

· Inspection Equipment:

· Brinell Hardness Tester: Verifies hardness (≥621 HBW) as required by ASTM A532.

· Impact Testing Machine: Assesses toughness under impact loads, critical for pump applications.

· Ultrasonic Testing (UT) Machine: Detects internal defects, ensuring structural integrity.

· Coordinate Measuring Machine (CMM): Verifies dimensional accuracy against customer specifications.

· Wear Resistance Testing Rig: Simulates abrasive slurry conditions to validate liner longevity.

This equipment ensures that every liner meets stringent quality and performance standards.

Testing Procedures and Protocols

WALKSON implements comprehensive testing protocols to validate the quality and performance of cast white iron pump liners, adhering to ASTM A532 and EN 12513 standards:

· Hardness Testing:

· Conducted using a Brinell hardness tester to confirm ≥621 HBW hardness.

· Multiple surface points are tested to ensure uniformity, per ASTM A532 requirements.

· Impact Testing:

· Performed using an impact testing machine to evaluate toughness under high-stress conditions.

· Results are measured in Joules, following ASTM E23 standards.

· Wear Resistance Testing:

· Simulates abrasive slurry conditions using a wear testing rig to assess liner longevity.

· Tests replicate real-world pump environments, ensuring performance in high-abrasion settings.

· Ultrasonic Testing (UT):

· Uses high-frequency sound waves to detect internal defects, ensuring structural integrity.

· Conducted per ASTM A609 standards for castings.

· Dimensional Inspection:

· Performed using a CMM to verify compliance with customer specifications and ISO 2768 tolerances.

· Ensures precise fitment and compatibility with pump designs.

Clients can witness these tests during the Factory Acceptance Test (FAT) and First Article Trial (FTA), ensuring transparency and confidence. We welcome third-party inspectors designated by clients to oversee testing and production, reinforcing our commitment to accountability.

Industry Applications and Relevance

WALKSON’s cast white iron pump liners are designed for high-abrasion environments across multiple industries:

· Mining: Protects slurry pumps in mineral processing, handling abrasive slurries like ore and tailings.

· Dredging: Enhances pump durability in sand and gravel extraction, ensuring reliable performance.

· Power Generation: Supports slurry pumps in coal ash handling for power plants.

· Aluminum Power Conveyance: Ideal for handling abrasive materials in aluminum processing, such as at QAL Company in Australia.

Our liners are compatible with equipment from leading brands such as Warman, GIW, and KSB, ensuring seamless integration and optimal performance in existing pump setups.

Quality Assurance Processes

WALKSON implements advanced quality assurance processes before batch production to ensure reliability and customer satisfaction:

· PPAP (Production Part Approval Process): Provides documentation and samples to confirm production meets customer requirements.

· FAT (Factory Acceptance Test): Allows clients to observe testing and inspection at our facility, ensuring transparency.

· FTA (First Article Trial): Validates the initial production sample, ensuring compliance with specifications.

· PFMEA (Process Failure Mode and Effects Analysis): Identifies and mitigates manufacturing risks, enhancing reliability.

· APQP (Advanced Product Quality Planning): Ensures a structured approach to product development and quality control.

These processes guarantee that our pump liners deliver consistent quality and performance.

Advantages of Choosing WALKSON

Partnering with WALKSON for cast white iron pump liners offers unmatched benefits:

· Proven Expertise: Over 20 years of experience in wear-resistant castings, making us a trusted industry leader.

· Superior Quality: Liners crafted to exceed ASTM A532 and EN 12513 standards, ensuring durability and reliability.

· Customization: Tailored solutions to match specific pump models and operational needs, optimizing performance.

· Global Support: Comprehensive technical assistance and after-sales service, with fast deliveries worldwide.

· Transparency: Openness to third-party inspections and client-witnessed FAT and FTA, building trust.

Consult with WALKSON to discover how our pump liners can enhance your operations. Contact us today for customized solutions.

Contact WALKSON

For inquiries, customization requests, or to place an order, reach out to our team:

· Email: info@walkson.com

· WhatsApp/WeChat: +86 188 6716 5932

Choose WALKSON for high-performance cast white iron pump liners that drive efficiency and durability. Visit walkson.com to learn more and transform your slurry handling operations.
