Step-by-Step Operation of Roots Blowers with Diagrams & Animations (Part 3)

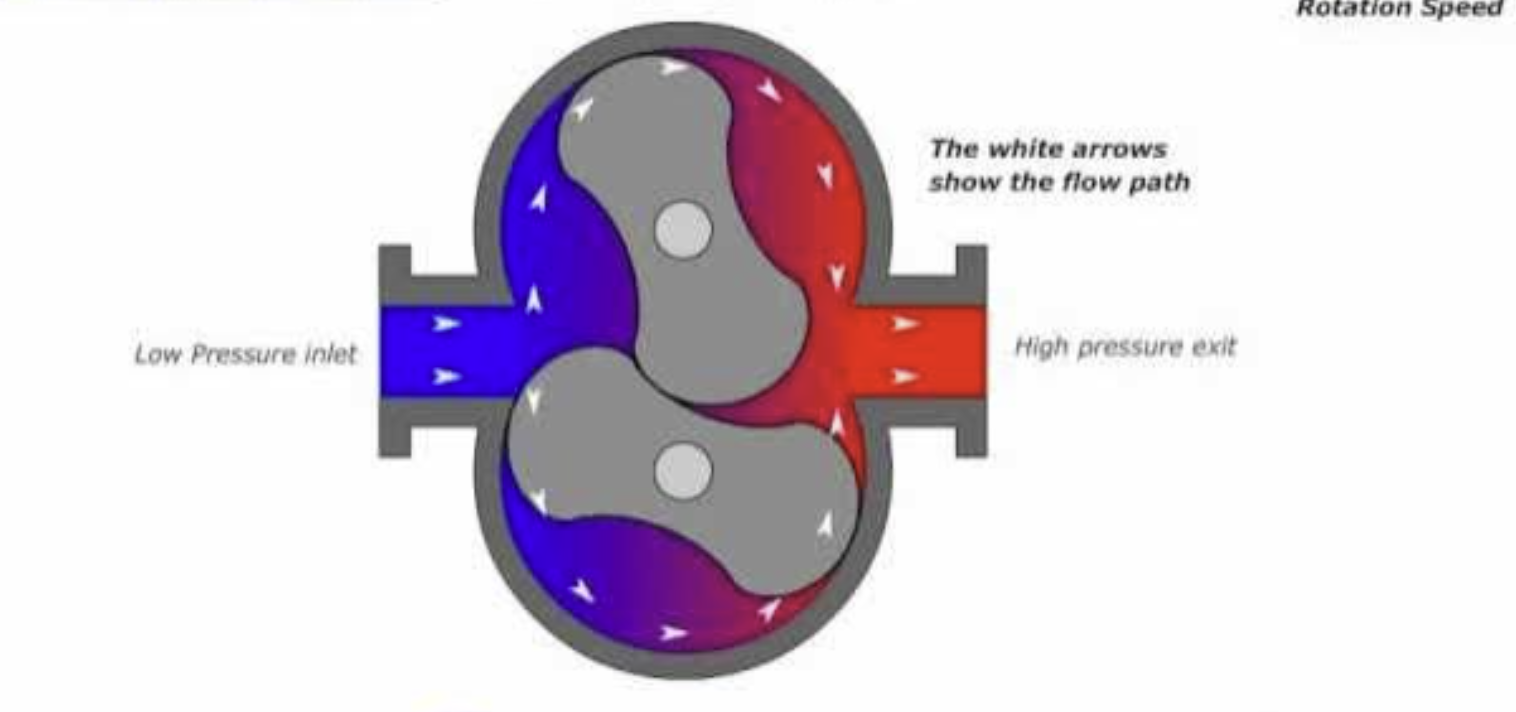

Step-by-Step Operation of Roots Blowers with Diagrams & Animations (Part 3)Step 1 – Inlet Phase
Lobe A opens to inlet; pocket V traps P₁ air.


Step 2 – Transport Phase
Rotor carries pocket around casing; no compression yet.Step 3 – Discharge Phase
Pocket opens to P₂ side; backflow equalizes pressure instantly.Step 4 – Repeat

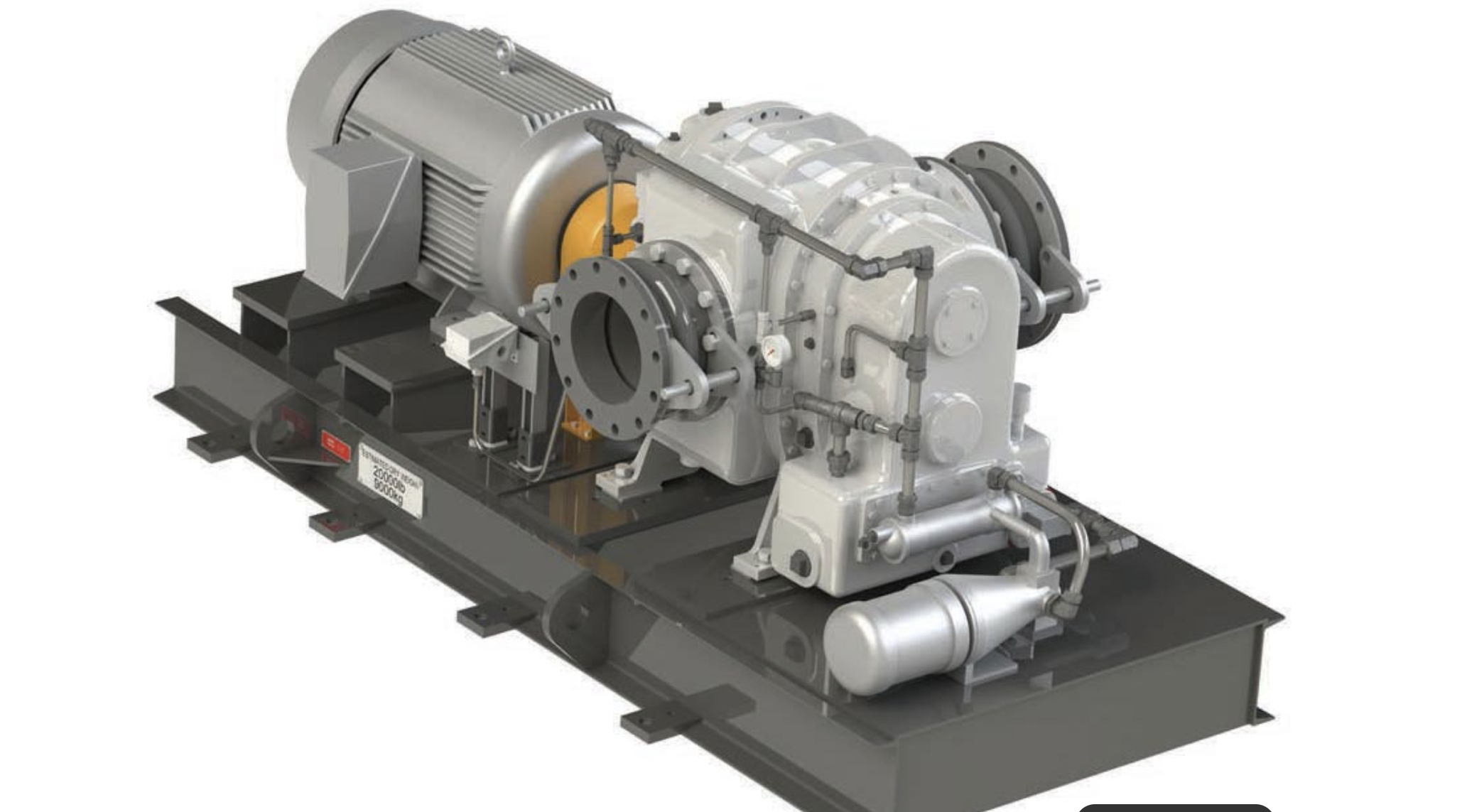

Four (2-lobe) or six (3-lobe) cycles per revolution.Full Assembly View (typical industrial unit)


Pro Tip from the Field
Install a silencer and check valve within 3 m of discharge—prevents reverse rotation damage when power fails (common Reddit r/IndustrialMaintenance story).Link back: Part 1 – Principles (blog1) | Part 2 – Components (blog2)
