How Roots Blowers Work: The Fundamental Principles Explained (Part1)

As a professor with 25 years teaching fluid machinery and consulting on industrial gas handling, I am often asked: “How exactly do Roots blowers work?” Unlike dynamic compressors that rely on velocity to build pressure, a Roots blower is a positive-displacement rotary lobe machine that traps, transports, and discharges a fixed volume of air or gas without internal compression. The pressure rise occurs externally against system back-pressure—an isochoric (constant-volume) process that delivers pulse-free flow when properly designed.


The Roots Blower Working Principle in Simple Terms

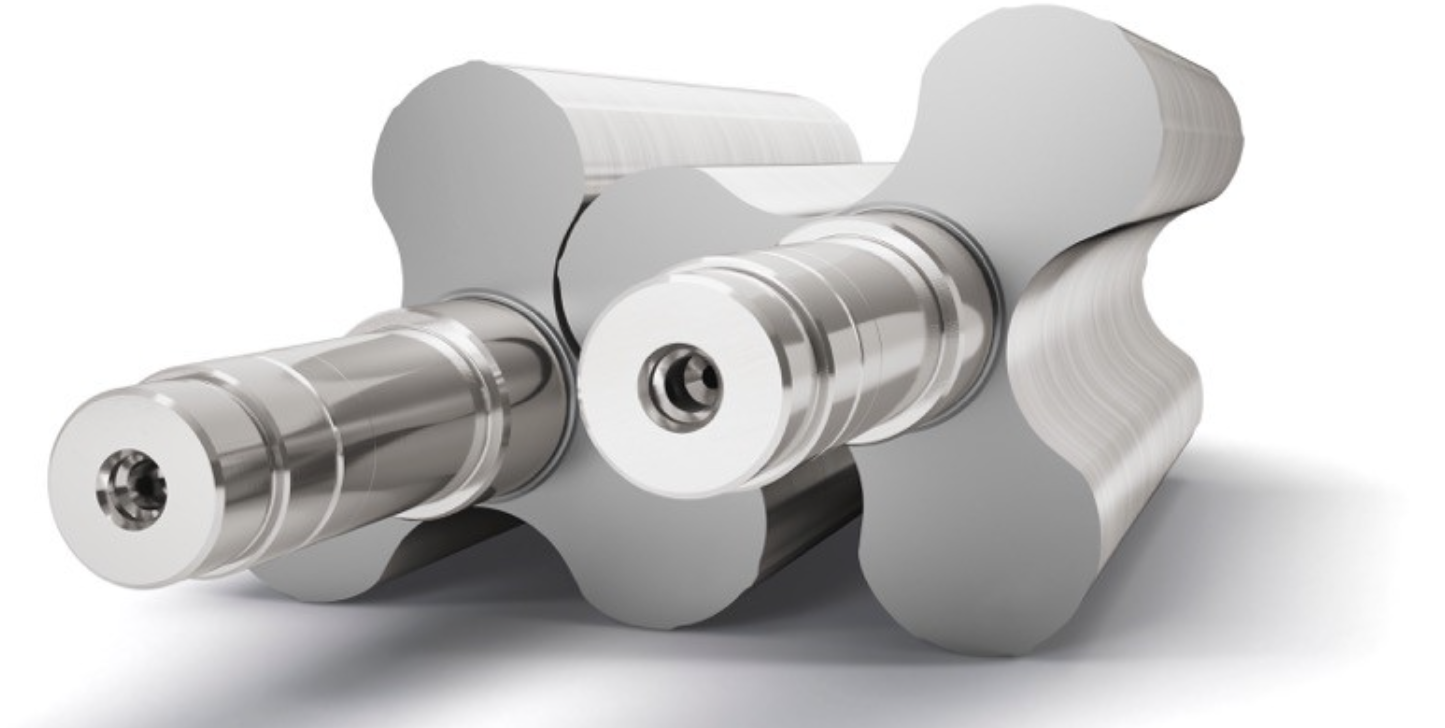

Two (or three) lobed rotors rotate in opposite directions inside a tight-clearance casing. Timing gears synchronize the rotors so their lobes never touch. As each lobe passes the inlet port, it traps atmospheric air in the pocket formed between the rotor, casing wall, and end plates. The rotor carries this pocket around the casing to the discharge port, where the trapped volume is expelled. Because the discharge pressure is higher than inlet pressure, a small backflow rushes into the pocket at the moment of port opening—causing the characteristic slight temperature rise and the characteristic “whoosh” sound.Key Engineering Insight (DIN 24193 & ISO 6336)
According to DIN 24193 (Rotary Positive Displacement Blowers), rotor-to-casing clearance is typically held between 0.10–0.30 mm for standard industrial units to balance leakage and contact risk. Volumetric efficiency η_v is therefore 85–95 % depending on pressure ratio and lobe count. The theoretical displacement per revolution for a two-lobe rotor is 4 × V_pocket; for three-lobe it is 6 × V_pocket.Why Temperature Rises (Reddit Engineers Always Ask This)
Reddit’s r/MechanicalEngineering and r/Wastewater threads frequently note the 10–30 °C rise even at low pressure ratios. This is not adiabatic compression inside the machine; it is the irreversible mixing of high-pressure discharge gas with the fresh pocket air. The process follows the energy balance:
ΔT ≈ (P₂/P₁ – 1) × (T₁ / η_isen) × (γ–1)/γ
where γ = 1.4 for air.WALKSON Precision Parts Ensure This Principle Performs
At WALKSON, our gray-iron and ductile-iron castings for housings and end plates are finish-machined to tolerances tighter than DIN 24193 requirements, guaranteeing the exact clearances the principle demands. Explore our Roots Blower Casting Parts and Blower Housing Casting pages.
Next: Part 2 dissects every component. Share this on LinkedIn if you manage aeration or pneumatic conveying systems!
