Key Components of Roots Blowers: Precision Castings & Forgings That Deliver Reliability (Part 2)

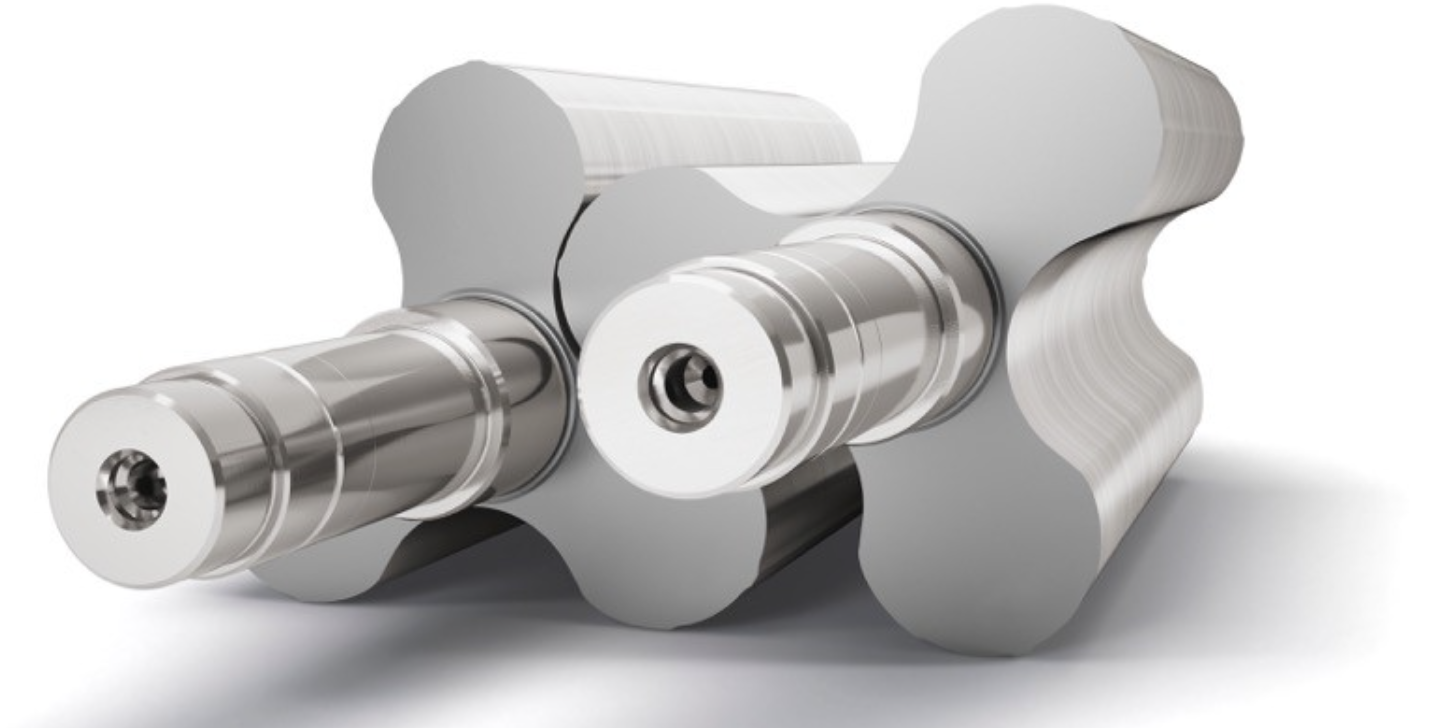

Building on Part 1's principle, let's examine the hardware. Every Roots blower is only as reliable as its precision-engineered parts.1. Rotors (Impellers)
Two- or three-lobed, usually ductile iron or stainless steel castings. WALKSON's Rotor Casting (Impeller) undergo CNC machining to AGMA Q10 gear-quality profiles. Three-lobe rotors reduce pulsation by 40 % compared with two-lobe (per ISO 1328).2. Timing Gears

Critical for synchronization. WALKSON supplies forged gear wheels from 20CrMnTi alloy steel (ASTM A29 / EN 10083), carburized to 58–64 HRC, ground to ISO 6336 Class 5. Tooth profile deviation < 5 µm—vibration drops below 2.5 mm/s RMS.ea83fbeb-e70a-4990-961a-8bf798f5b0a2.png

3. Casing & End Plates
Gray or ductile iron castings per ASTM A48/A536. WALKSON's Blower Housing Casting and End Plate Casting feature ASTM B117 salt-spray resistance > 500 h after machining.4. Bearings & Shafts
Heavy-duty roller or sleeve bearings sized for L10 life > 50 000 h at full load.Table 1: 2-Lobe vs 3-Lobe Rotor Comparison (Typical 2000 m³/h unit, 0.8 bar ΔP)
Parameter
2-Lobe
3-Lobe
Advantage
Displacement/rev
4 pockets
6 pockets
3-lobe smoother flow
Pulsation amplitude
±12 %
±5 %
Lower noise & pipe stress
Volumetric efficiency
88–92 %
90–94 %
Slightly higher
Max pressure ratio
2.0
1.8
2-lobe for higher ΔP
Data derived from field measurements and DIN 24193 test protocols.WALKSON's Edge
Our forged gears and castings are NDT-inspected (ASTM E709 magnetic particle + ASTM A388 ultrasonic) and delivered JIT to global OEMs. See Forged Gear Wheels.Continue to Part 3 for animated operation.
